Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator

Sertifikasi
Cina Guangzhou Icesource Refrigeration Equipment Co., LTD Sertifikasi
Cina Guangzhou Icesource Refrigeration Equipment Co., LTD Sertifikasi
Ulasan pelanggan
Your service good, and we contact for a long, your cube ice machine reliable -- Mentor, Kosovo

—— Mentor from Kosovo

Because CBFI block ice machine, cube ice machine, cold room quality good. so i choose your company

—— Haitham from Saudi Arabia

Emily - I hope you are healthy and happy. I am glad to receive all cold room containers and it looks very good like we expected. Thanks Rusty.

—— Rusty Brown from CA , USA

the ice block ice machine is operating well thanks

—— Ismaila Silue

let me inform you, that both CS's are assembled and our grantee is very satisfied! thanks for good cooperation!

—— Malkhaz Bregadze

we are very happy with the quality of the work done by CBFI for manufacture and installation of Freezer and cooler rooms in our facility in Chicago

—— Soni

I 'm Online Chat Now

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator
Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator
Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator

Gambar besar :  Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator

Detail produk:
Place of Origin: China
Nama merek: CBFI
Sertifikasi: CE, ISO
Model Number: TV100
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator

Deskripsi
Compressor: Germany compressor tube ice diameter: 35mm, 28mm, 22mm
Evaporator: Stainless steel 304 seamless pipe Cooling way: Water cooling
Daily Capacity: 10,000kg/24h Control system: Touch screen with English
PLC: Siemens system Origin: Guangzhou, China
Material: 304 Stainless steel Refrigerant: R404A/R507
Cahaya Tinggi:

Tube Ice Machine

,

Ice Tube Maker

easy operate stainless steel 304 evaporator 10 ton tube ice machine

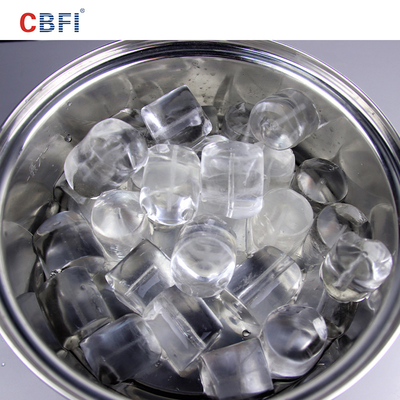

1. Crystal tube ice



Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 0

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 1

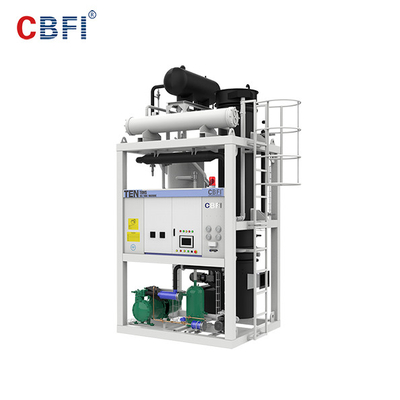

2. CBFI tube ice machine pictures

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 2



10 ton tube ice machine



Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 3





3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


4. Main Features

1:Perfect design: adopting 3D simulation assembly, compact structure, small land area.
2:Full automatically: the whole ice making process is automatically controlled by PLC system.
3:Healthy ice: all the parts which contact with ice making water is made of SUS304 material to ensure totally clean ice
4:Low power consumption: the evaporator adopts special alloy material and is processed by special heat treatment to ensure best heat conductibility.
5:No ice dropping problem:CBFI’s patent hydraulic expansion technique can avoid ice dropping problem.
6:Fast ice dropping:the whole ice dropping process takes within 120 seconds making full use of hot Freon gas in the system.

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 4

5. Tube Evaporator Features:
1.Adopting Stainless Steel 304 ensures totally clean tube ice.
2.The adoption of middle partition can avoid ice forming on the evaporator floor freezing and breaking down the ice cutter.
3.Using patent hydraulic expansion technique makes sure water freezing equally, which avoids ice dropping problem.

tube-ice-machine-304stainless-steel-evaporator





6. Customer cases

CBFI 30 ton tube ice machine in Indonesia

Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 6



Easy Operate 10 Ton Ice Tube Machine With Stainless Steel 304 Evaporator 7
